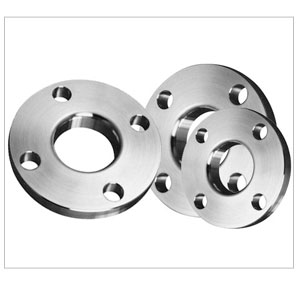

Lapped Joint Flange
Fortune Stainless Steel is acknowledged as a manufacturer, exporter & suppliers of Lapped Joint Flange & Stainless steel Flanges (Gr. 304, 304L, 316, 316L) available in a variety or grades, materials, and finishes, in metric and inch sizes. These Lapped Joint Flange are manufacture in different Material of Flanges like SORF Flanges, Carbon Steel Lapped Joint Flanges, Stainless Steel Lapped Joint Flanges, Alloy Steel Lapped Joint Flanges, Duplex Steel Lapped Joint Flanges, Inconel Lapped Joint Flanges, Monel Lapped Joint Flanges, Hastelloy Lapped Joint Flanges, Copper Nickel Lapped Joint Flanges in India & Asia, conform to Slip On specifications.
Lap Joint Flanges are similar to other types of industrial flanges, but it does not have a raised face. Lap joint flanges are used in conjunction with a “Lap Joint Stub End”. The total initial cost of a lap joint flange along with a stub end is around one-third higher than that of comparable welding neck flanges. The pressure holding capacity of lap joint flanges is comparatively lower, and the fatigue life for the assembly is only one tenth that of welding neck flanges.The lap joint flange with the stub end assembly is normally used in piping systems which require regular dismantling for inspection and cleaning. These flanges slip over the pipe, and are not welded or otherwise fastened to it. Bolting pressure is transmitted to the gasket by the pressure of the flange against the back of the pipe lap (Stub End).
LAP JOINT FLANGES, LJ FORGED FLANGES PRODUCTION RANGE
Size: 1/2″ (15 NB) to 48″ (1200NB)
Standards: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Lap Joint Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Lapped Joint Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8
Stainless Steel Lap Joint Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L
Alloy Steel Lap Joint Flanges: ASTM A182 F1, F5, F9, F11, F22, F91
Special Alloy Lap Joint Flanges: Duplex, Super Duplex, Nickel Alloys
Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Value Added Services: CNC Machining, Customised Flanges
Diameter : 1/2″ to 24″
Our range of industrial flanges are ideal for application in diverse industry for high pressure and temperature applications. These flanges are designed with precision for easy installation. Apart from standard flanges, we also offer custom designed flanges to meet the specific application requirements of the customers.
Range :15 NB UP TO 600 NB IN 150 LBS , 300 LBS, 400 LBS , 600 LBS , 900 LBS , 1500 LBS , 2500 LBS / TABLE 2.5 , TABLE 6 , TABLE 10, TABLE 16,TABLE 25 , TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400
Form :
Slip On , Socket Weld , Blind , Lapped , Screwed , Weld Neck , Reducing , Spectacle ,Slip On Boss , Plate , Plate Blank , Screwed Boss.
Stainless Steel :
ASTM / ASME SA 182 F 304 , 304L , 304H, 309H, 310H , 316 , 316H , 316L , 316 LN , 317 , 317L , 321 , 321H , 347H .
Duplex Steel :
ASTM / ASME SA 182 F 44 , F 45 , F51 , F 53 , F 55 , F 60 , F 61.
Range :15 NB UP TO 600 NB IN 150 LBS , 300 LBS, 400 LBS , 600 LBS , 900 LBS , 1500 LBS , 2500 LBS / TABLE 2.5 , TABLE 6 , TABLE 10, TABLE 16,TABLE 25 , TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400
Form :
Slip On , Socket Weld , Blind , Lapped , Screwed , Weld Neck , Reducing , Spectacle ,Slip On Boss , Plate , Plate Blank , Screwed Boss
Carbon Steel : ASTM / ASME A 105 , ASTM / ASME A 350 LF 2 .
Alloy Steel :
ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91
Range :15 NB UP TO 600 NB IN 150 LBS , 300 LBS, 400 LBS , 600 LBS , 900 LBS , 1500 LBS , 2500 LBS / TABLE 2.5 , TABLE 6 , TABLE 10, TABLE 16,TABLE 25 , TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400
Form :
Slip On , Socket Weld , Blind , Lapped , Screwed , Weld Neck , Reducing , Spectacle ,Slip On Boss , Plate , Plate Blank , Screwed Boss
Nickel Alloy :
ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ) , UNS 4400 (MONEL 400 ) , , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 ( INCONEL 601 ) , UNS 6625 (INCONEL 625) ,UNS 10276 ( HASTELLOY C 276)
ASTM / ASME SB 160 UNS 2201 (NICKEL 201 )
ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )
Copper Alloy :
ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600.
ASTM / ASME SB 151 UNS NO. 70600 , 71500 , C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
ASTM / ASME SB 152 UNS NO C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200
Grades :Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000Size :1/2"NB to 12"NB
Standard :ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Types :Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features:
Durability
Corrosion resistance
Dimensional accuracy
High strength
Excellent finish
Grades : Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Size : 1/2 inch - 48 inch (15mm - 1200mm)
Standard :ANSI/ASME B16.5, ANSI B16.47 API, DIN, JIS, BS
Types :Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features :
Durability
Corrosion resistance
Dimensional accuracy
High strength
Excellent finish
Grades :Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DSFlanges Grade :ASTM A 182 F 304/L; 316/L; 317/L; 309; 310; 321; 347; 904L.
Type :SORF, BLRF, WNRF, SOLJ
Class :50 To 3000
Flanges Range :DN15 Upto DN1800 IN 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS / TABLE 2.5, TABLE 6, TABLE 10, TABLE 16, TABLE 25, TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400
Types :Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features:
Durability
Corrosion resistance
Dimensional accuracy
High strength
Excellent finish
Grades :Monel 400, Monel k500Range :1/2" NB to 60" NB
Types :Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features:
Durability
Corrosion resistance
Dimensional accuracy
High strength
Chemical resistance
Excellent finish
Specifications1. Material:Titanium.
2. Grade:Gr2, Gr5, Gr7, Gr9.
3. Standards:DIN,ASTM,BS.
4.Application:Bicycles,Motors,Chemicals.
Description
Standards:DIN,ASTM,BS.
Strength :Superior Quality, Fast delivery, Competitive price as well as humanized after-sales service.
Features :Low density, rustless, good antiwear property, high strength.
Size:Set the size according to the customers' requirements.
The tables below show the most common sizes but are not exhaustive.
150 Lbs
| Drilling | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Bore | Dia.(D) | Thick.(E) | Dia.(B) | Dia.(A) | Height(H) | Nbr | Holes | Dia.(C) |
| 1/2″ | 90 | 11.2 | 30 | 22.9 | 16 | 4 | 15.87 | 60.3 |
| 3/4″ | 100 | 12.7 | 38 | 28.2 | 16 | 4 | 15.87 | 69.9 |
| 1″ | 110 | 14.3 | 49 | 34.9 | 17 | 4 | 15.87 | 79.4 |
| 1 1/4″ | 115 | 15.9 | 59 | 43.7 | 21 | 4 | 15.87 | 88.9 |
| 1 1/2″ | 125 | 17.5 | 65 | 50.0 | 22 | 4 | 15.87 | 98.4 |
| 2″ | 150 | 20.7 | 78 | 62.5 | 25 | 4 | 19.05 | 120.7 |
| 2 1/2″ | 180 | 22.3 | 90 | 75.4 | 29 | 4 | 19.05 | 139.7 |
| 3″ | 190 | 23.9 | 108 | 91.4 | 30 | 4 | 19.05 | 152.4 |
| 3 1/2″ | 215 | 23.9 | 122 | 104.1 | 32 | 8 | 19.05 | 177.8 |
| 4″ | 230 | 23.9 | 135 | 116.8 | 33 | 8 | 19.05 | 190.5 |
| 5″ | 255 | 23.9 | 164 | 144.4 | 36 | 8 | 22.22 | 215.9 |
| 6″ | 280 | 25.4 | 192 | 171.4 | 40 | 8 | 22.22 | 241.3 |
| 8″ | 345 | 28.6 | 246 | 222.2 | 44 | 8 | 22.22 | 298.5 |
| 10″ | 405 | 30.2 | 305 | 277.4 | 49 | 12 | 25.40 | 362.0 |
| 12″ | 485 | 31.8 | 365 | 328.2 | 56 | 12 | 25.40 | 431.8 |
| 14″ | 535 | 35.0 | 400 | 360.2 | 79 | 12 | 28.57 | 476.3 |
| 16″ | 595 | 36.6 | 457 | 411.2 | 87 | 16 | 28.57 | 539.8 |
| 18″ | 635 | 39.7 | 505 | 462.3 | 97 | 16 | 31.75 | 577.9 |
| 20″ | 700 | 42.9 | 559 | 514.4 | 103 | 20 | 31.75 | 635.0 |
| 24″ | 815 | 47.7 | 663 | 616.0 | 111 | 20 | 34.92 | 749.3 |
